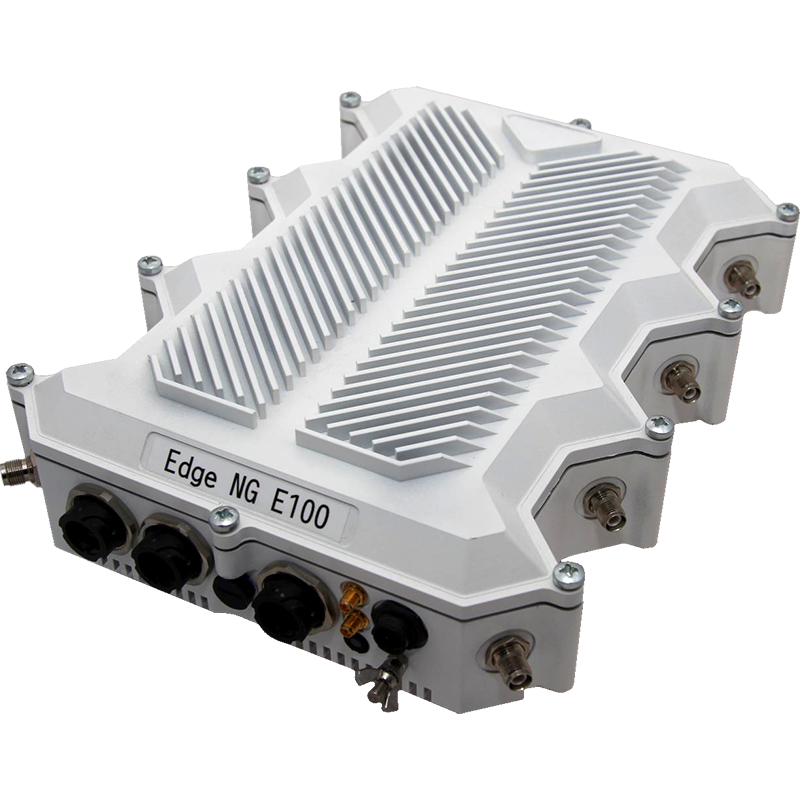

Totum4 IoT Edge Gateway
More than a next generation carrier class edge gateway device, the IP67 rated Totum4 supports high speed wired and wireless data communications and can also be configured as a 5G/6G base station, therefore allowing organisations to build their own private networks.
The inclusion of ultra fast processing capabilities normally associated with separate devices for services such as QoS, encryption and other customer specific applications, the Totum4 is much more than a pass through data device, therefore greatly reducing cost and increasing the efficiency of any organisations network.
Key Attributes
- Size: 358 x 265 x 82mm, overall size less than 0.008 m3
- Weight: 5.3kg
- Power Requirements: 71 watts
- Power Supply: mains or wind/solar technologies
- Edge Computing Data Capability: 100Gbps
- RAM: Up to 256Gb DDR4 72 bit ECC RAM
- Fibre Optic Connections: 10 & 40 Gbps
- Ports: Ethernet, USB & GNSS. 10Gbps Ethernet supports 802.1 (2.5, 5 and 10 Gbps). 1Gbps Ethernet ports support TSN. Link aggregation across all ethernet and radio ports.
- QoS / Traffic Shaping
- Standards: all worldwide standards including link aggregation/load balancing, QoS, VLAN, 802.1ad, 802.1p, 802.1q
- Concurrency: Multiple terrestial and satellite radio links concurrently
- Architecture: Linux based supporting SDN & NFV
- Security: State of the art traffic security and management IPSec, utilising UK Govt National security and intelligence (GCHQ) guidance and testing
- Modular Design: making it easy to migrate from existing to new technologies e.g. 6G
- Ruggedized Housing: made from aircraft grade aluminium alloys, meaning it can operate in temperatures of -40C to +55C
